DL-XX16
Exterior Dimension：613*434*352mm
Inner Dimension：575*395*333mm
Material：HDPE/PP
Weight：*

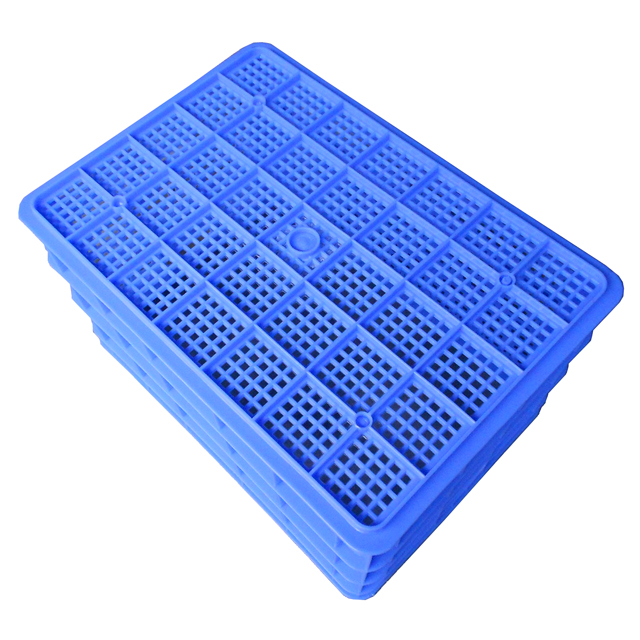

Stack and Nest Plastic Crate
Technical Data,
| Structure | mesh base + mesh sides | Item No.: DL-XX16 |
| Material | HDPE/PP | |
| Ext.Dim | 613*434*352mm | |
| Int.Dim | 575*395*333mm | |
| Color | Blue / More | |
| Load Capacity ≤20kg | Stacking Load ≤50kg | |
| 20'GP About 405 PCS | 40'GP About 972 PCS | |
| Operating Environment -25°C~+60°C | Nesting type 1 | |

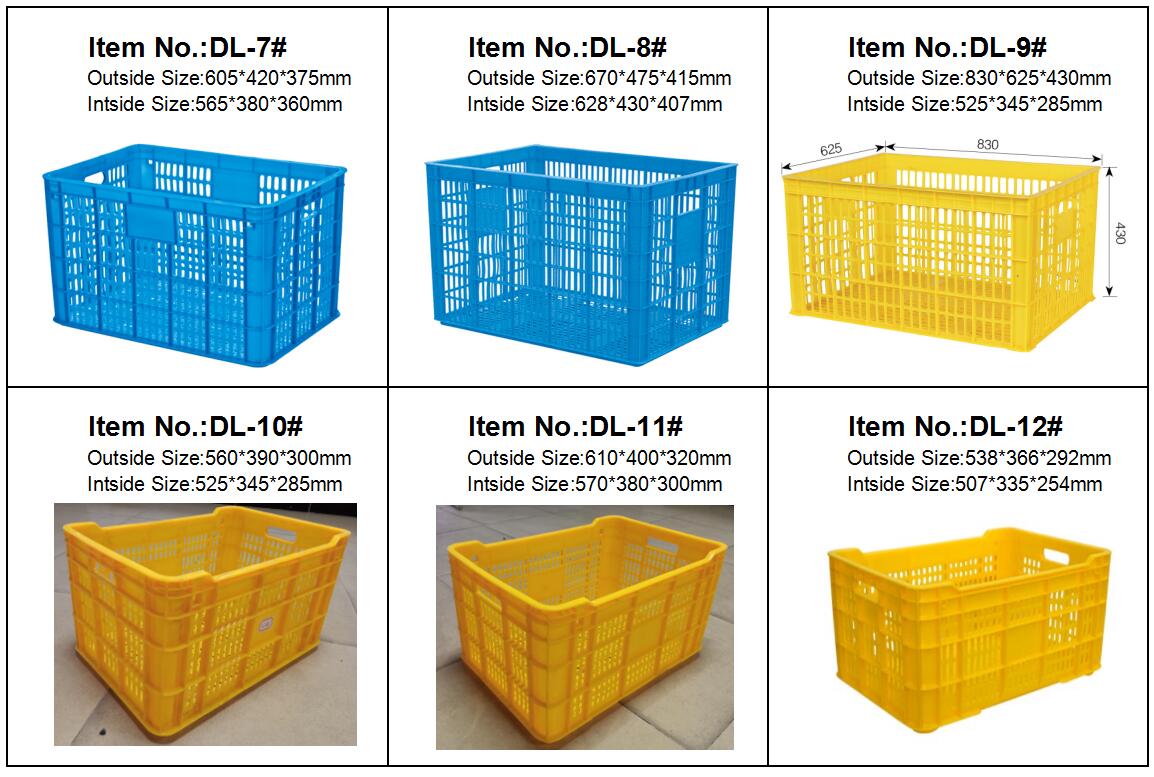

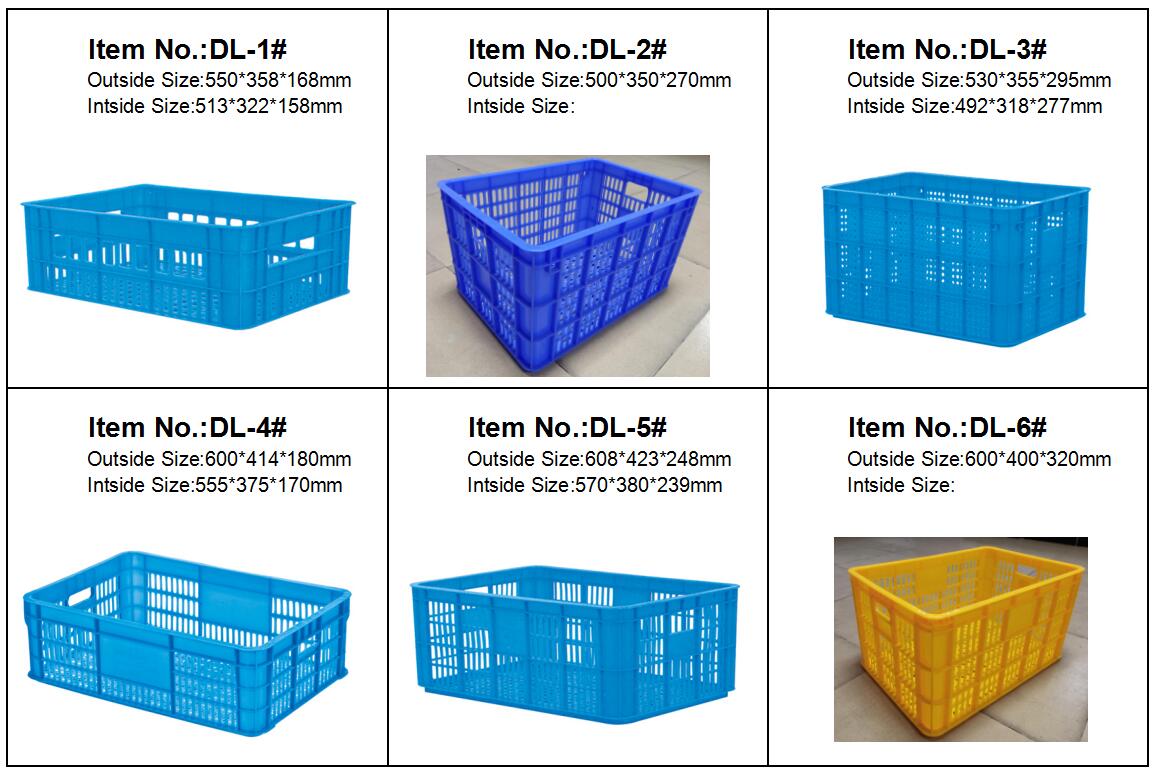

| Different Size of Plastic Crate | ||||||
| Item No. | Outside Dimension(mm) | Intside Dimension(mm) | Item No. | Outside Dimension(mm) | Intside Dimension(mm) | |
| DL-XX1 | 550*358*168 | 513*322*158 | DL-XX16 | 613*434*352 | 575*395*333 | |
| DL-XX3 | 605*425*315 | 565*385*300 | DL-XX17 | 530*355*295 | 492*318*277 | |
| DL-XX4 | 670*475*415 | 628*430*407 | DL-XX18 | 675*375*315 | 635*335*300 | |
| DL-XX6 | 495*355*275 | 460*320*260 | DL-XX19 | 430*342*200 | 395*305*190 | |
| DL-XX7 | 600*410*180 | 555*375*170 | DL-XX20 | 388*308*111 | 355*275*104 | |
| DL-XX8 | 560*375*262 | 521*342*257 | DL-XX21 | 600*420*345 | 550*370*325 | |
| DL-XX9 | 608*423*248 | 570*380*239 | DL-XX22 | 580*380*210 | 480*345*205 | |
| DL-XX10 | 830*625*435 | 778*578*413 | DL-XX23 | 630*415*185 | 585*370*170 | |
| DL-XX11 | 605*420*375 | 565*380*360 | DL-XX24 | 600*420*110 | 560*380*95 | |
| DL-XX14 | 1040*745*530 | 985*690*505 | DL-XX27 | 830*630*510 | 780*580*485 | |
| DL-XX15 | 970*680*480 | 910*630*460 | DL-XX28 | 610*420*170 | 570*380*155 | |
